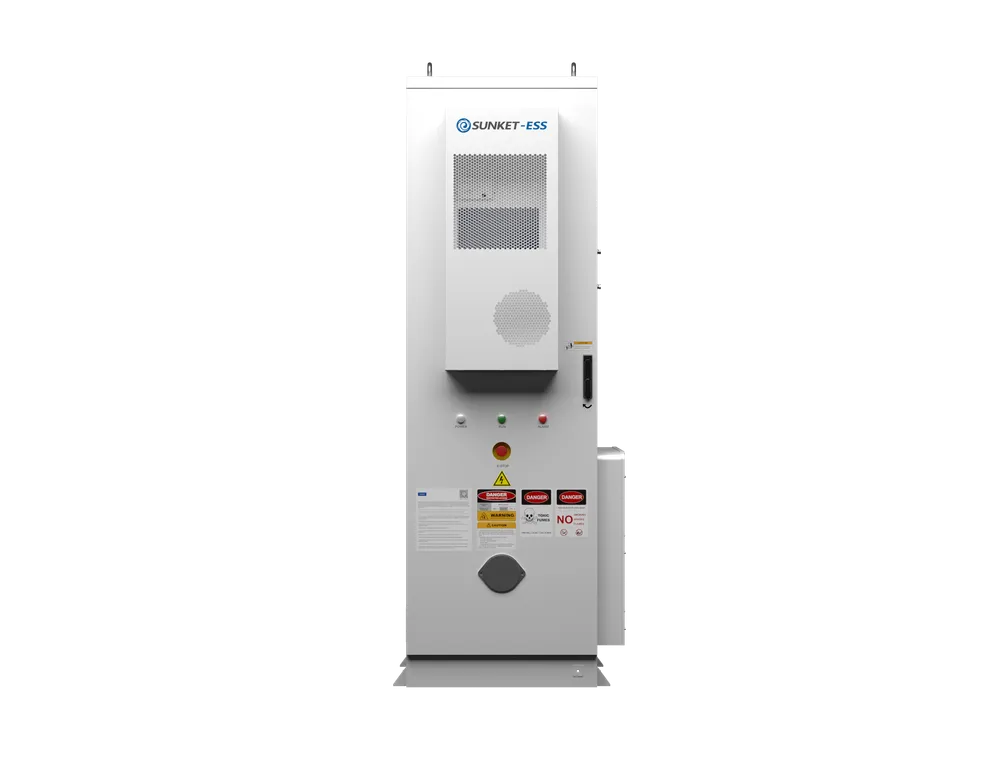

SKTESS112 — 112 kWh air-cooled C&I battery system
An integrated battery-plus-inverter storage cabinet for commercial and industrial sites, built on LiFePO4 314Ah cells with intelligent cooling and fire suppression.
The SKTESS112 packs battery and storage inverter into a single air-cooled cabinet, sized for factories, commercial buildings and other high-consumption sites. It pairs with Deye storage inverters and is compatible with major inverter brands.
Flexible · Reliable · Efficient · Smart
Flexible
LFP 314Ah large capacity, highly integrated and pre-assembled, with flexible expansion up to 5 units in parallel.
Reliable
DC electric circuit safety protection, multi-level battery protection and an integrated fire suppression system.
Efficient
Intelligent air-cooling system with <10ms off-grid / on-grid switching and up to 95% charge–discharge efficiency.
Smart
Intelligent cloud platform management with real-time monitoring of operational status.
SKTESS112 technical data
| Battery type | LiFePO4 |
|---|---|
| Nominal capacity | 314 Ah |
| Battery configuration | 1P112S |
| Nominal energy | 112.537 kWh |
| Nominal voltage | 358.4 V |
| Operating voltage range | 313.6 – 403.2 V |
| Max. continuous charge / discharge current | 157 A |
| Charge / discharge rate | 0.5P |
| Max. charge–discharge efficiency | 95% (@25–30°C, 0.5P) |
| Cycle life | ≥ 6000 (@25±2°C, 0.5P/0.5P, 70% EOL) |
| Ingress protection | IP54 |
| Anti-corrosion grade | C4 |
| Operating temperature | -20°C ~ 50°C |
| Relative humidity | 5 – 95% (non-condensing) |
| Communication | CAN / RS485 |
| Cooling | Air cooling |
| Dimensions (W × D × H) | 852 × 1330 × 2315 mm |
| Weight | 1190 ±10 kg |
| Max. parallel | 5 units |
Source: SUNKET datasheet SKT-EN-2026V1.0. Specifications are subject to change without further notification.
Compatible inverter brands
Solis
FOX ESSSOFARAforeSOSEN SUNKET supplies SKTESS112 matched with Deye inverters in Malaysia.
Interested in the SKTESS112?
Tell us your site capacity and load profile — our local team will help size the system.
